Track, Earthworks and Structure Surveys

Track Structure Surveys

Anthony Brookes Surveys Ltd specialise in detailed topographical surveys of all aspects of the rail environment.

Typically our surveys cover embankments / cuttings and bridge structures along with associated track and infrastructure for remediation, maintenance and renewals. These may be for small isolated sites up to entire route surveys. We are able to position our surveys to Ordnance Survey Grid and Datum or tied into Snakegrid derived route coordinates.

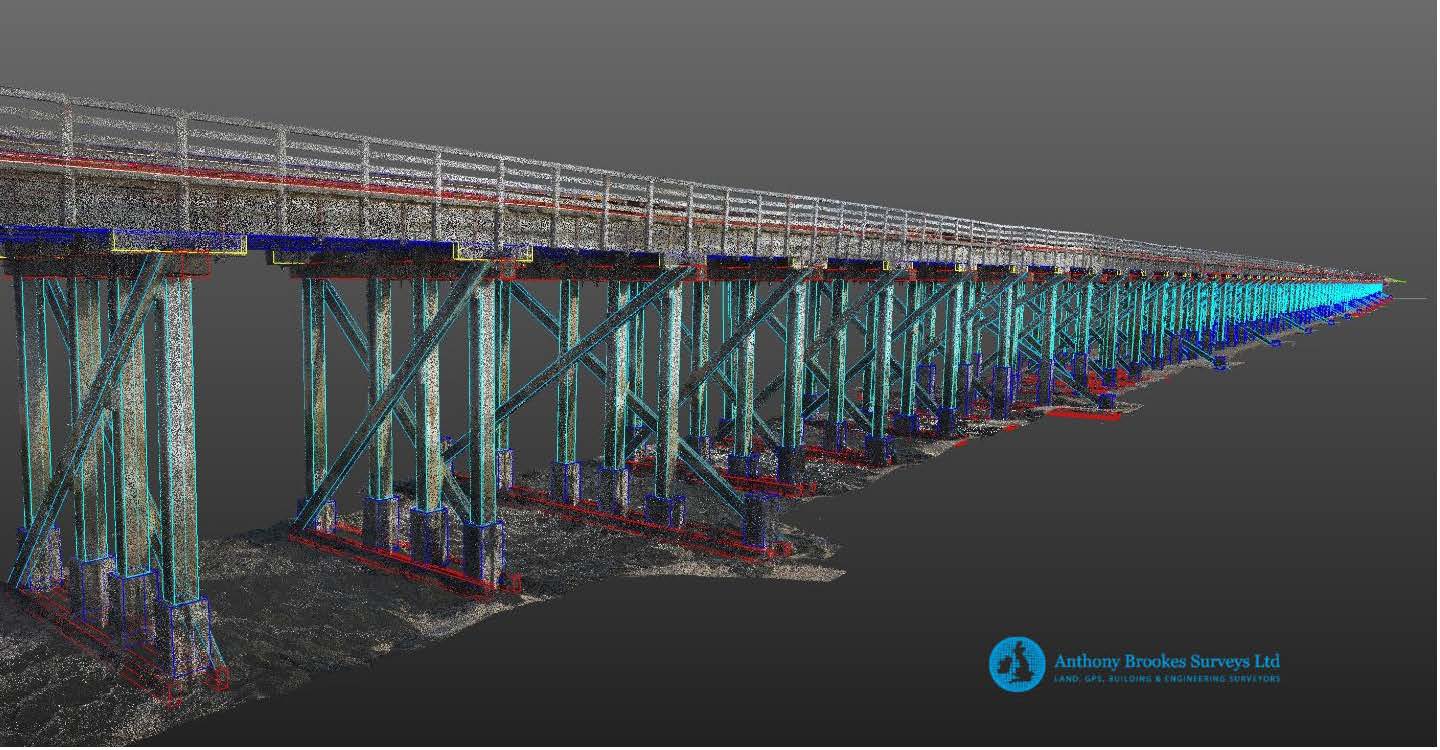

Recently we have worked on bridge and tunnel surveys for GWEP and GWRM route enhancements, surveys for viaduct preventative maintenance works and station platform surveys for upgrades. We have also carried out Laser Scanning Surveys of cliffs and rock faces to enable detailed reinforcement and netting design.

We are able to provide survey drawings in 2D and 3D plan and structure elevations and can output in a variety of CAD formats in a logical layering system.
